PVBAT 16.5KWh LiFePO4 Storage Battery

Name: PVBAT 16.5KWh LiFePO4 Storage Battery - PVBAT
Availability: InStock

价格范围：$2,999.00 至 $8,999.00

Safe & Reliable, Ultra-Long Lifespan, Smart Monitoring, Powerful Adaptability

The lithium iron phosphate (LiFePO4) material offers excellent thermal stability, combined with an intelligent BMS system for enhanced safety and reliability. Equipped with CATL automotive-grade battery cells, the battery delivers up to 10,000 charge cycles, offering a lifespan 3–5 times longer than traditional lead-acid batteries, backed by a 5-year warranty.

It supports Bluetooth and cloud-based remote monitoring, allowing real-time management through a mobile APP, while also being compatible with multiple communication protocols for easy system integration.

Designed for harsh environments, it withstands temperatures up to 60°C, supports discharge temperatures from -20°C to 40°C, and features an IP54 protection rating, making it especially suitable for hot and humid climates.

Choose Your Inverter Option*

Choose Your Battery Option*

清除

Longer Lasting · Built for Long-Term Use

✔ Over 10,000 cycle life at 90% DOD
✔ Lifespan is 3–5 times longer than traditional lead-acid batteries
✔ Lower long-term ownership cost

More Stable · Safer Power Storage

✔ Built with LiFePO4 (Lithium Iron Phosphate) cells
✔ Excellent thermal stability — safer and more reliable
✔ Built-in Smart BMS Protection System

Strong Environmental Adaptability

✔ Operates reliably in temperatures up to 60°C
✔ Discharge temperature range: -20°C ~ 40°C
✔ Ideal for hot & humid environments, especially tropical regions

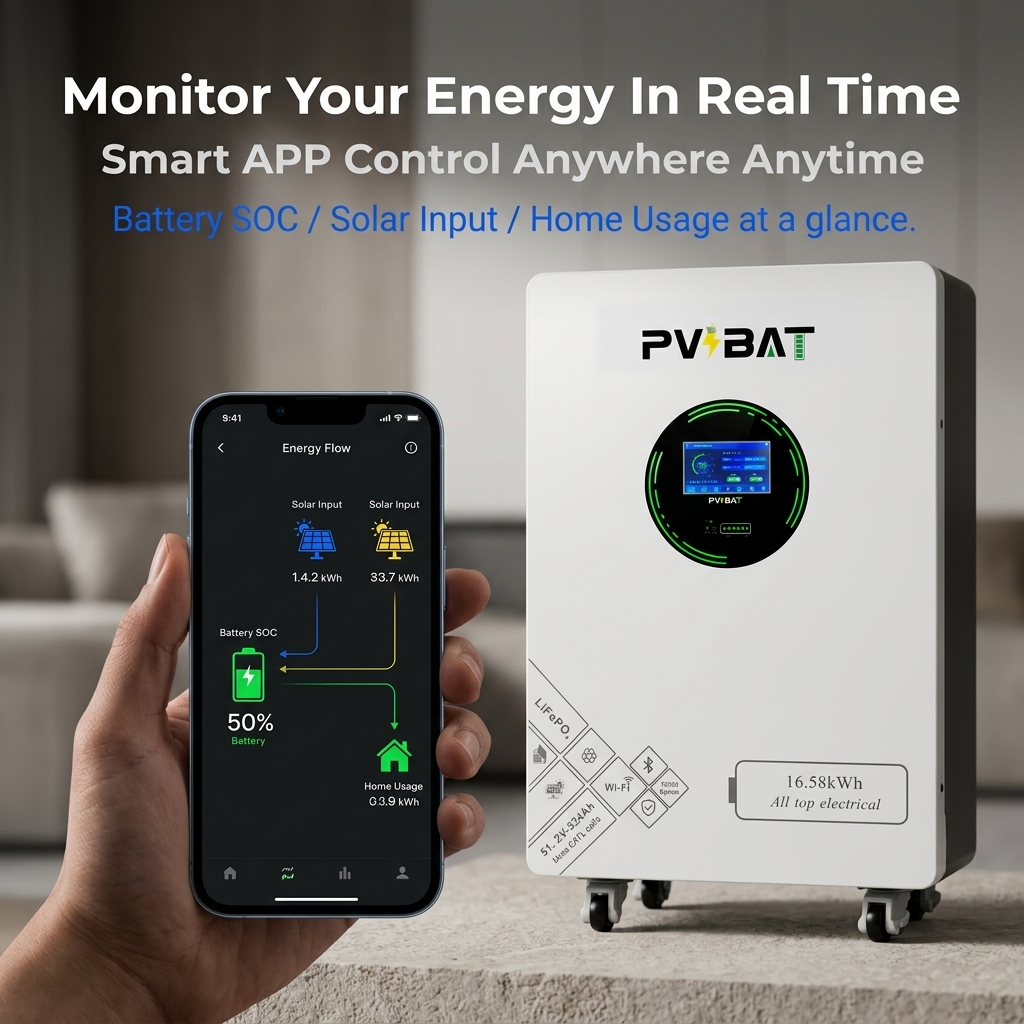

Smarter · More Convenient

✔ Supports Bluetooth connection + Cloud Monitoring
✔ Real-time battery status and power monitoring via mobile APP
✔ Compatible with multiple inverter communication protocols (RS485 / CAN)

Product Specifications

Item	Specification
Battery Type	LiFePO4
Rated Voltage	51.2V
Capacity	324Ah
Energy	16.5KWh
Battery Configuration	16S1P
Operating Voltage	44V – 58.4V
Charge / Discharge Current	5A – 100A
Max Discharge Current	200A
Cycle Life	10,000 Cycles (90% DOD)
Working Temperature	Charging: 0~40°C / Discharging: -20~40°C
Weight	122KG
Dimensions	809 × 465 × 267mm
Protection Level	IP54
Communication	RS485 / CAN / RS232 / Bluetooth

Application Scenarios

Perfect for:

✔ Residential Energy Storage Systems
✔ Off-Grid Solar Systems
✔ RV & Outdoor Power Supply
✔ Small Commercial Backup Power

One Complete System to Eliminate Power Outage Anxiety

System Connection Overview

System Structure

Solar Panels → Inverter → Battery → Home Appliances

✔ Mobile APP Remote Monitoring
✔ Supports Hybrid Inverters
✔ Supports Smart Meters

Why Choose This Battery Over Lead-Acid Batteries?

Comparison	Our LiFePO4 Battery	Traditional Lead-Acid Battery
Cycle Life	10,000 Cycles	300–500 Cycles
Weight	Lighter (122KG)	Much Heavier
Safety	High	Moderate
Maintenance	Maintenance-Free	Requires Maintenance
Long-Term Cost	Lower	Higher

Reliable Backup Power for Modern Homes

Safe, intelligent, and built to last — designed for solar energy systems, backup power, and energy independence.

Choose Your Inverter Option*	16.5KVA, 12KVA, 6KVA
Choose Your Battery Option*	32.15KWh, 20KWh, 16.58KWh, 10KWh
