Application Scenarios
Suitable for:
- Home Backup Power Systems
- Solar Energy Storage Battery
- Communication Equipment Backup
- Outdoor Events & Performances
- Low-Voltage High-Capacity Power Supply Applications
Product Information
Basic Specifications
| Item | Specification |
|---|---|

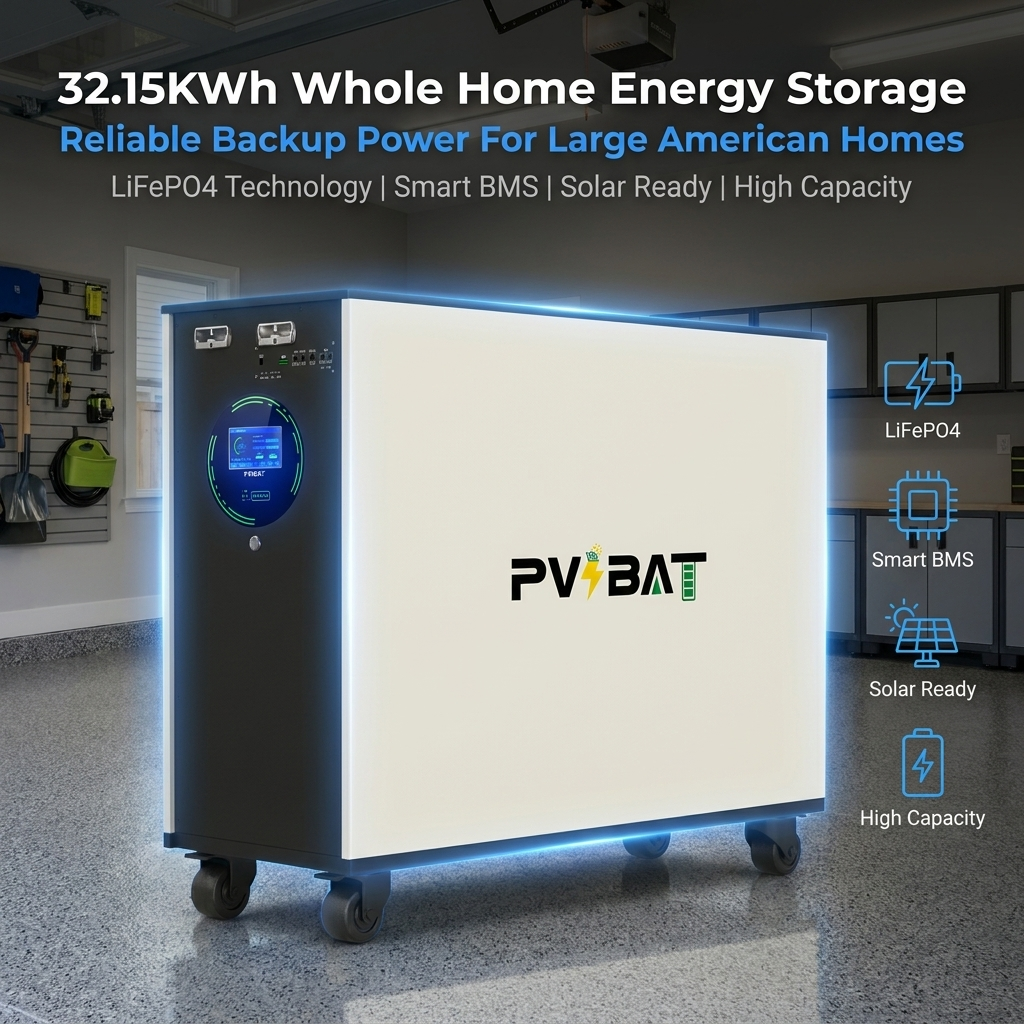

| Model | Elephant-48628 (Cart-48800) |
| Battery Type | LiFePO4 (Lithium Iron Phosphate / LFP) |
| Nominal Voltage | 51.2V |
| Nominal Capacity | 628Ah |
| Nominal Energy | 32.15kWh |
| Charge Cut-off Voltage | 58.4V |
| Discharge Cut-off Voltage | 44.8V |
Charging & Discharging Performance
| Item | Specification |
|---|---|
| Recommended Charging Current (Per Port) | 150A × 2 |
| Max Continuous Charging Current (Per Port) | 150A × 2 |
| Max Continuous Discharging Current (Per Port) | 150A × 2 |
Physical Specifications
| Item | Specification |
|---|---|
| Dimensions | 1000 × 340 × 900 mm |
| Weight | Approx. 242 kg |
Communication & Compatibility
| Item | Specification |
|---|---|
| Communication Interface | CAN / RS485 |
| Supported Protocols | Compatible with mainstream inverter protocols such as Panneng, Gurewatt, Deye, etc. |
Operating Environment
| Item | Specification |
|---|---|
| Discharge Temperature | -15°C ~ 60°C |
| Storage Temperature | 10°C ~ 35°C |
| Relative Humidity | ≤95% (45°C ±2°C) |
| Storage & Transportation Humidity | ≤95% (45°C ±2°C) |
| Atmospheric Pressure | 70 ~ 106 kPa |
1. High-Safety LiFePO4 Battery Cells, Stable & Reliable，Solar Energy Storage Battery
2. Smart BMS Protection Against Overcharge, Overdischarge, Short Circuit & Extreme Temperatures
3. 32.15kWh Large Capacity with Parallel Expansion Support
4. 6000+ Cycle Life for Long-Term Durability
5. Powerful 150A Continuous Charge & Discharge Output
6. Wide Operating Temperature Range: -15°C to 60°C
7. Fanless Silent Cooling for Noise-Free Operation
8. Plug & Play, Compatible with Mainstream Inverters like Deye
9. Intelligent LED Display for Real-Time Battery Status & SOC
10. Automatic Address Assignment for Easier Parallel Installation
