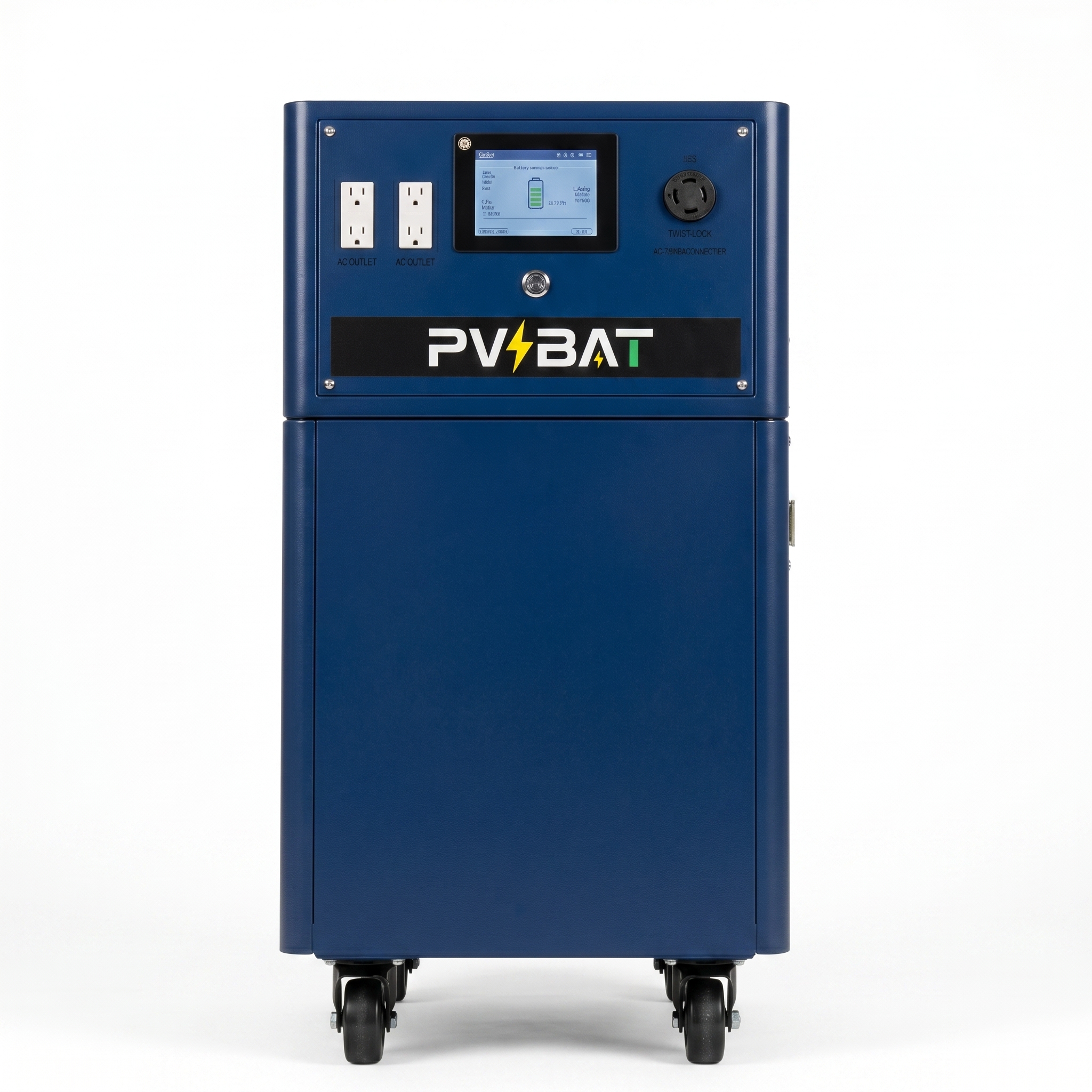

The PVBAT TIGER-T4-72 is a complete 24kWh All-in-One Energy Storage System engineered to simplify energy storage deployment.
Unlike traditional setups that require separate batteries, inverters, controllers, and external wiring, this system integrates everything into a single factory-assembled cabinet.
The TIGER-T4-72 includes:
- High-capacity 24kWh battery bank
- 5KVA inverter
- MPPT solar charge controller
- Intelligent Battery Management System (BMS)
- Smart monitoring interface
- Integrated safety protections
This reduces installation complexity, saves space, and improves reliability.

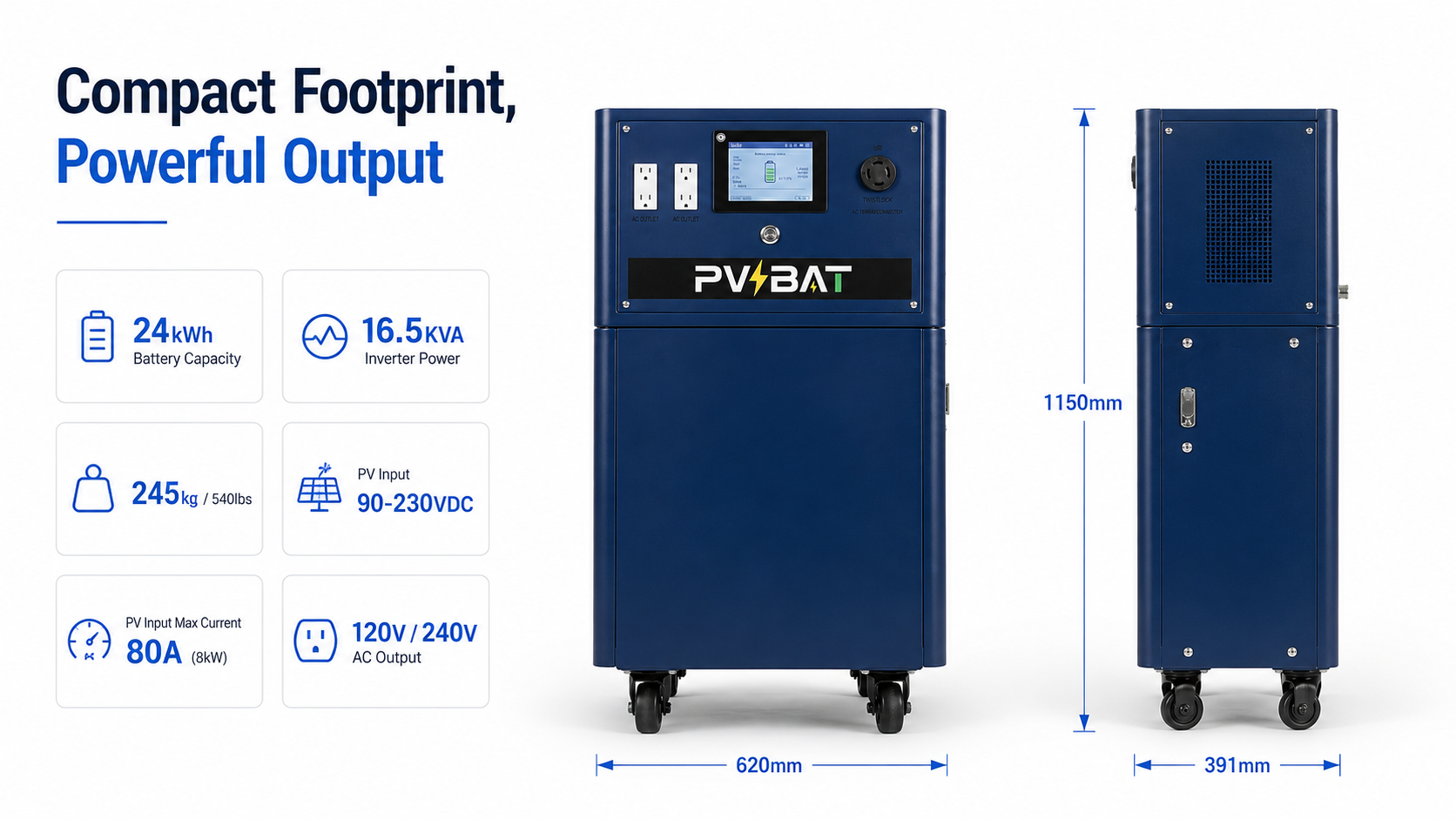

Technical Specifications
| Specification | Details |
| Model / SKU | PVBAT TIGER-T4-72 |
| System Type | 24kWh All-in-One Energy Storage System |
| Battery Capacity | 24kWh |
| Inverter Power | 16.5KVA |
| Output Voltage | 120V / 240VAC |
| PV Input Range | 90VDC – 230VDC |
| Display | 7-inch Smart Touchscreen |
| Connectivity | Wi-Fi App Monitoring |
| Mobility | Cabinet with Braked Wheels |
| Dimensions | 391mm × 620mm × 1150mm |
| Net Weight | 245kg / 540lbs |
Download Manual
Main Features
24kWh High-Capacity Energy Storage
The TIGER-T4-72 delivers powerful energy storage in one compact cabinet.
This 24kWh All-in-One Energy Storage System is ideal for users who need dependable long-duration backup power.
Built-in 16.5KVA Inverter
The integrated 16.5KVA inverter supports demanding 120V and 240V applications, allowing the system to power:
- Home appliances
- Air conditioners
- Refrigerators
- Water pumps
- Office equipment
- Workshop tools

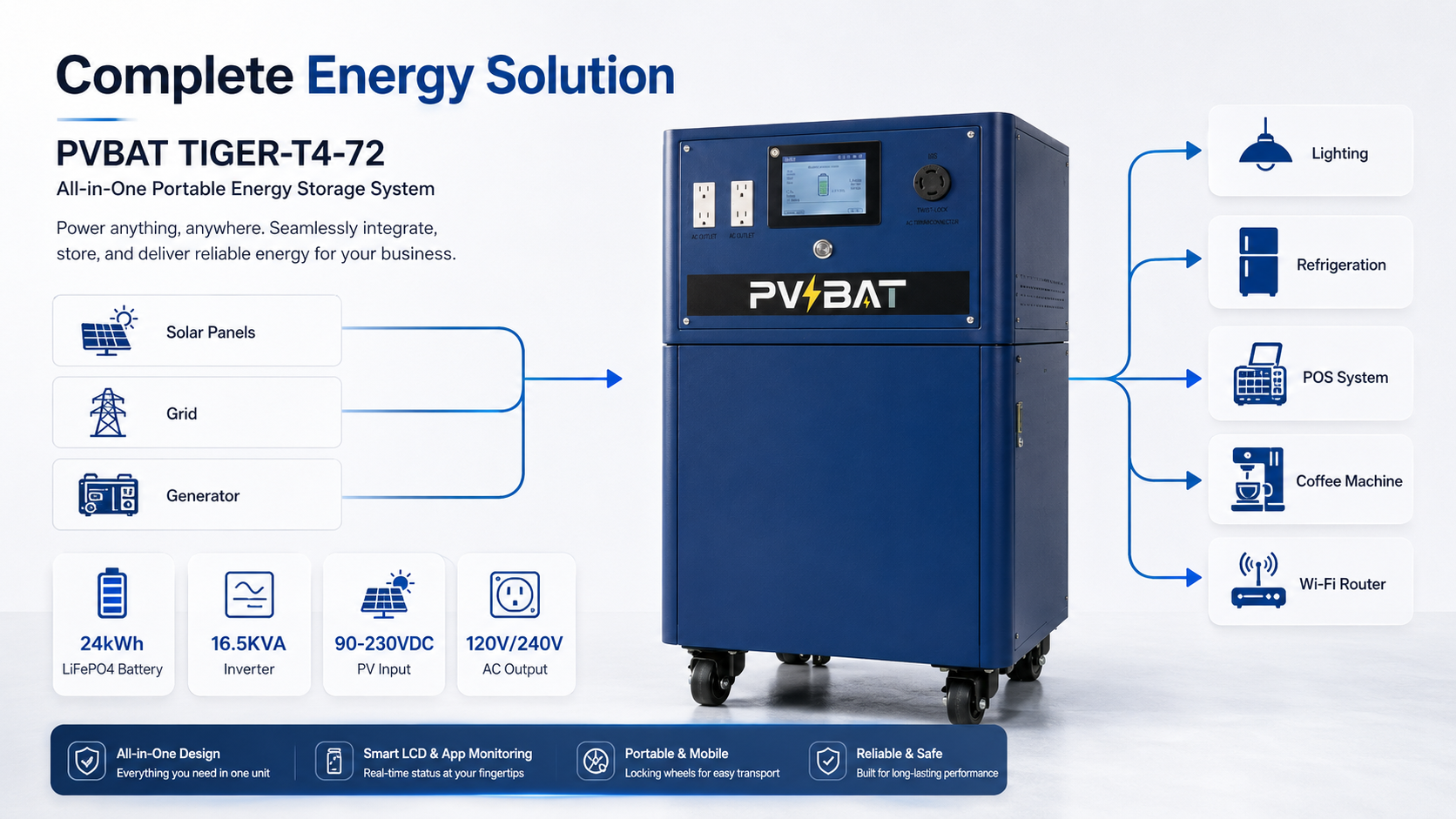

True All-in-One Design
Everything is factory-integrated into one cabinet:
- Battery
- Inverter
- MPPT controller
- Smart BMS
- Monitoring system
This simplifies installation and minimizes external wiring.
Solar + Grid Charging Support
The system supports both:
- Solar panel charging
- Grid charging
This provides flexible energy management for both backup and off-grid applications.

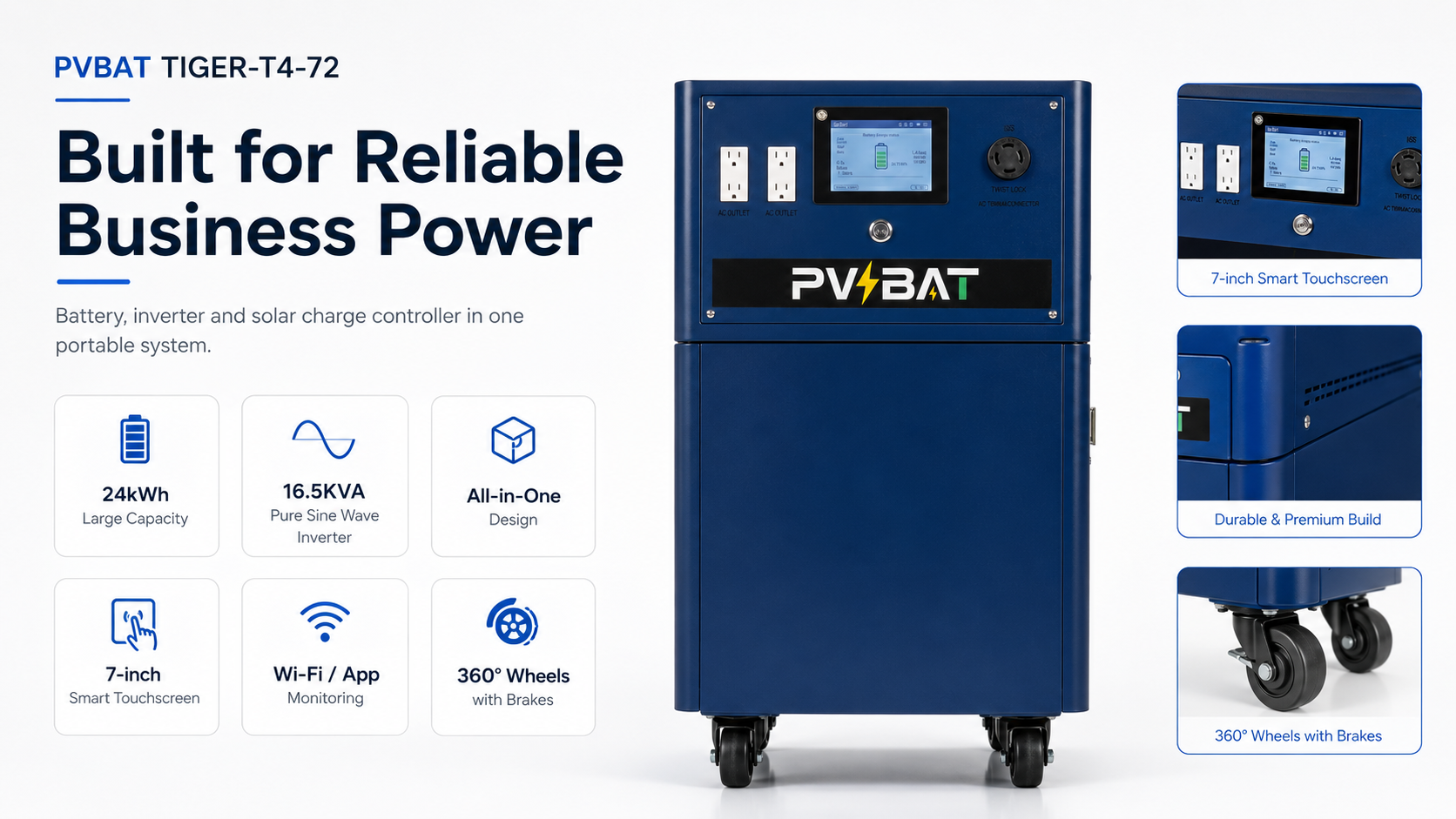

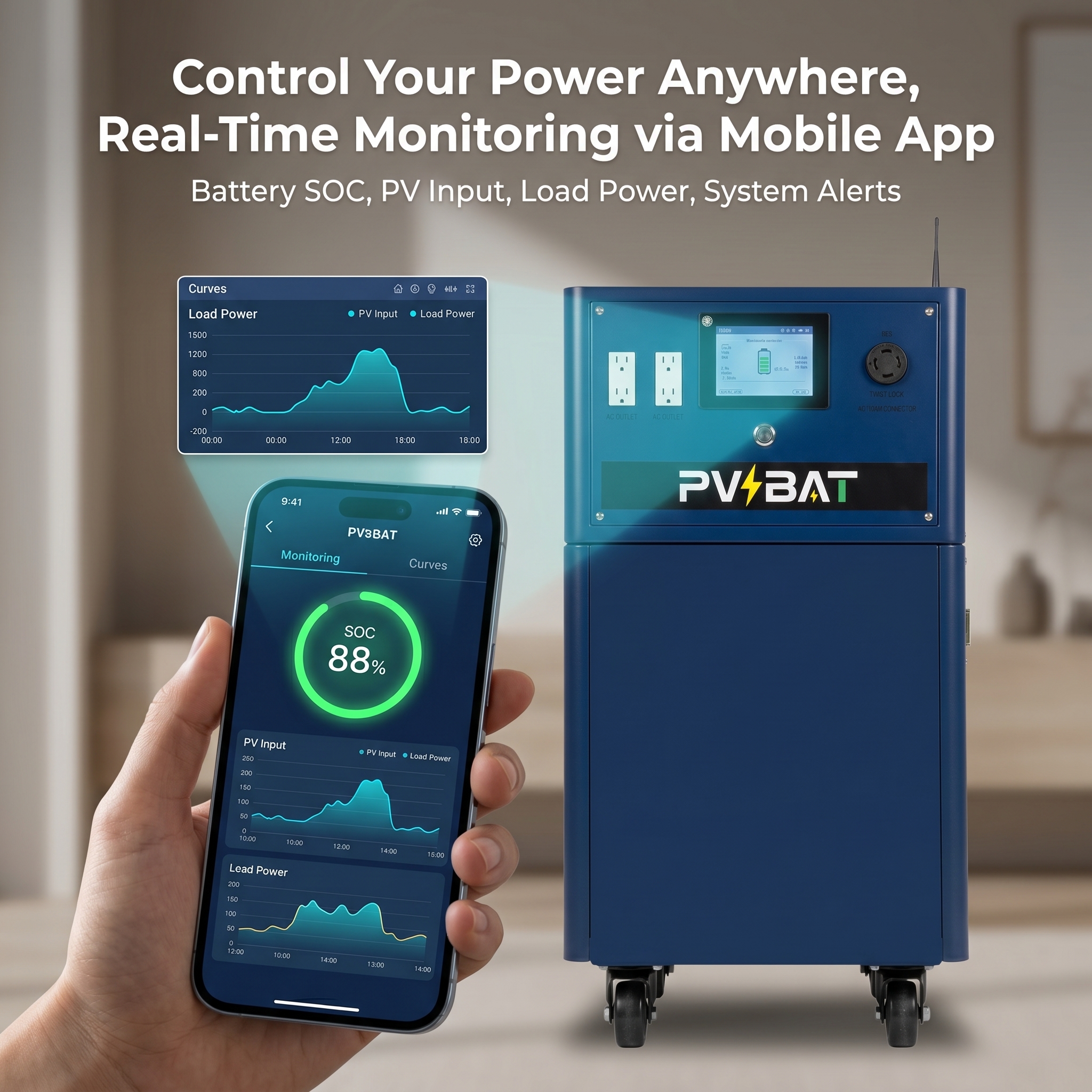

Smart Monitoring & Touchscreen Control
Monitor and control your system in real time through:
- 7-inch touchscreen interface
- Wi-Fi mobile app
Users can check battery status, charging performance, power consumption, and system alerts easily.

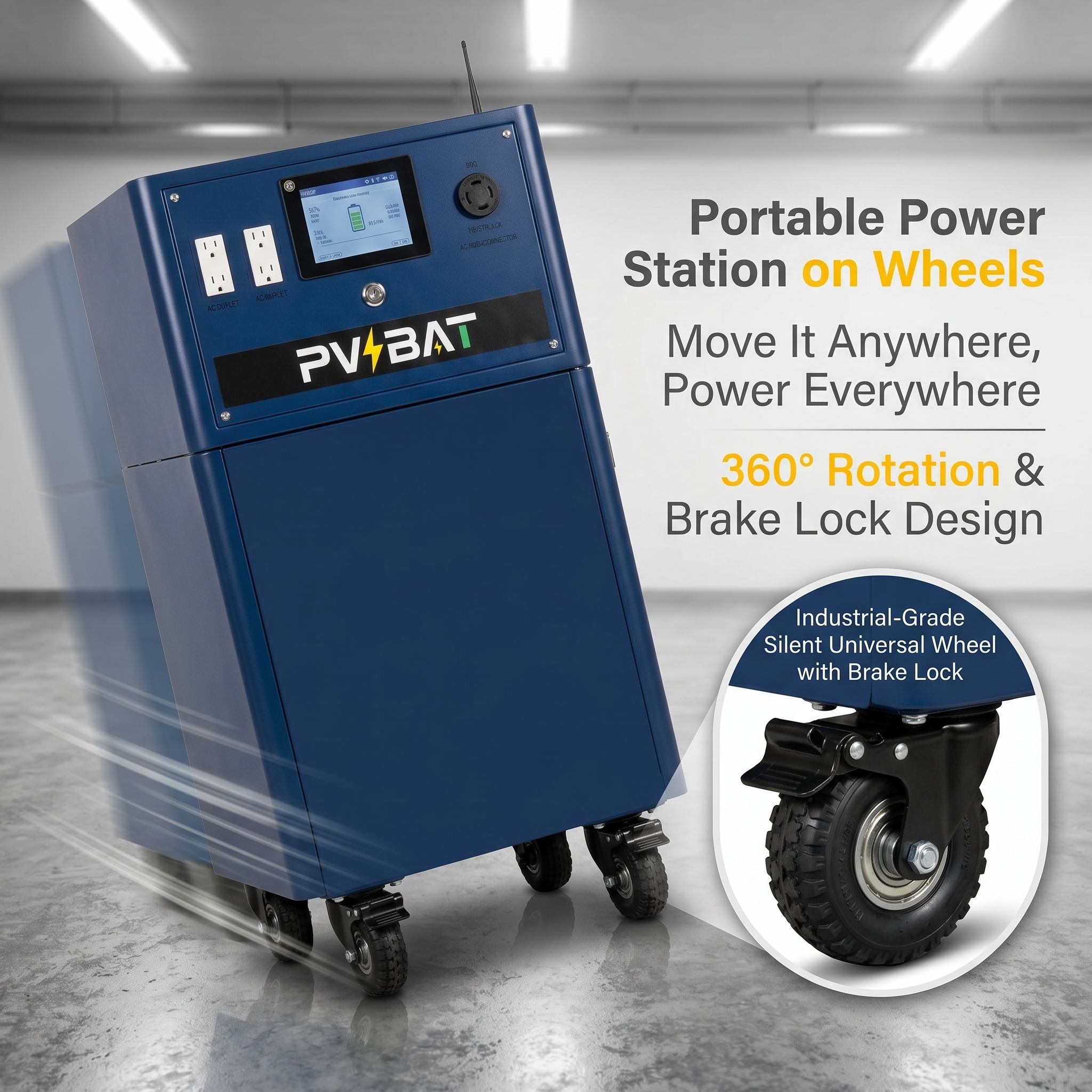

Mobile Cabinet with Wheels
The integrated wheel design allows easy repositioning for:
- Temporary installations
- Mobile work sites
- Events
- Backup relocation needs
Built-in wheel brakes keep the cabinet secure after placement.
Application Scenarios
Residential Backup Power
Keep essential household appliances running during power outages with reliable long-duration battery storage.
Solar Energy Storage
Store excess solar energy during the day and use it at night to reduce electricity costs and improve energy independence.

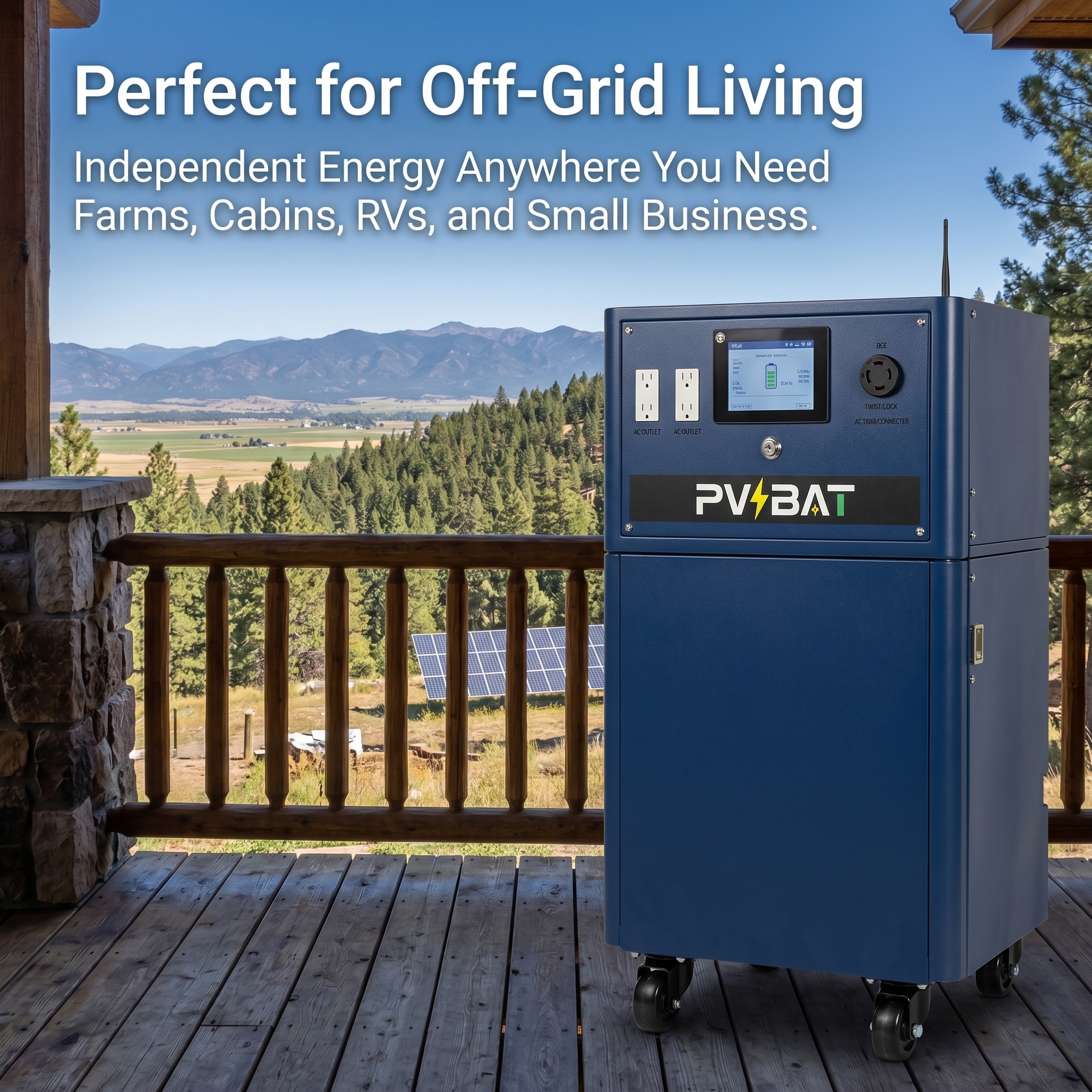

Off-Grid Living
An ideal power solution for:
- Cabins
- Farms
- Remote workshops
- Rural properties
- Tiny homes
Commercial Backup Systems
Suitable for businesses that require uninterrupted power for equipment, networking, and operations.
Mobile & Field Operations
The wheeled cabinet design makes the system suitable for:
- Film production
- Outdoor events
- Construction sites
- Emergency response
- Temporary power deployment
Why Choose the PVBAT TIGER-T4-72?
Simplified Installation
No need to source separate batteries, inverters, or controllers.
Space-Saving Integrated Design
Everything is consolidated into one organized cabinet.
Reliable Backup Power
Stable power output for homes, businesses, and remote operations.
Flexible Charging Options
Compatible with both solar energy and utility charging.
Smart Energy Management
Monitor and manage the system remotely through Wi-Fi connectivity.
FAQ
Q1:What is the PVBAT TIGER-T4-72?
A: The PVBAT TIGER-T4-72 is a 24kWh All-in-One Energy Storage System that integrates battery storage, inverter power, solar charging, and smart controls into one complete unit.
Q2:What is the total battery capacity?
A: The system provides 24kWh of battery storage capacity for backup and solar energy applications.
Q3:Is the system easy to install?
A: Yes. Since it is a fully integrated all-in-one system, installation is significantly simpler compared to traditional multi-component energy storage systems.
Q4:Why is it called an “All-in-One” Energy Storage System?
A: Because the TIGER-T4-72 combines:
- Battery bank
- Inverter
- MPPT solar controller
- Smart BMS
- Monitoring interface
- into one factory-assembled cabinet.
